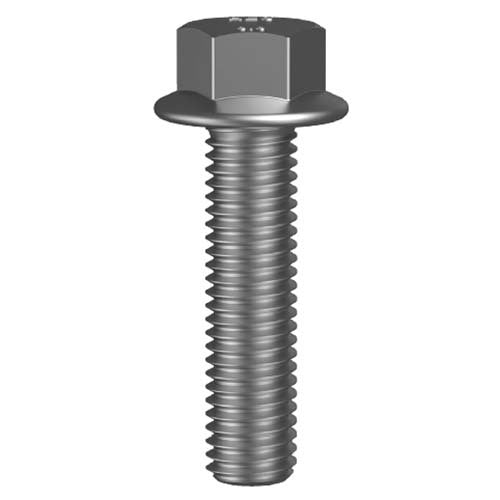

ZINC FLANGE BOLT GRADE 8.8

Zinc-plated Grade 8.8 flange bolts are high-tensile fasteners primarily used for medium-to-high stress applications in the automotive, construction, and machinery industries. The "8.8" rating indicates a minimum tensile strength of 800 MPa, making them significantly stronger than standard mild steel bolts.

Key Uses by Industry
Automotive Assembly: Used extensively for high-vibration and load-bearing components like engine mounts, suspension systems, chassis connections, and brake caliper mounting.
Structural Engineering: Ideal for connecting structural steel members in buildings, bridges, and frameworks where safety and high tensile strength are critical.
Heavy Machinery: Employed in the assembly of mining, agricultural, and industrial equipment that must withstand high levels of stress and tension.
Energy Sector: Used in power plants and for mounting components in wind turbine towers.

Why Use a Flange Bolt?
The integrated "washer-like" flange head provides several functional benefits:
Load Distribution: The wide flange head distributes clamping pressure over a larger surface area, which helps protect the material being fastened and reduces the risk of loosening.
Eliminates Separate Washers: The built-in flange acts as a washer, simplifying installation and ensuring a secure hold even without extra hardware.
Anti-Vibration (Serrated Type): Some flange bolts feature serrations on the underside of the head that "bite" into the surface to prevent the bolt from backing out due to vibration.

Performance Characteristics
Corrosion Resistance: The zinc plating acts as a sacrificial layer to protect the steel from rust. While effective for indoor or "mild" outdoor environments, it is typically recommended for internal use if long-term corrosion is a primary concern.
Strength Equivalent: Grade 8.8 is a metric designation roughly equivalent in strength to SAE Grade 5 imperial bolts.
Workability: These bolts offer good ductility, allowing them to absorb shock loads and elongate slightly before failing, which prevents sudden, catastrophic structural failure.
