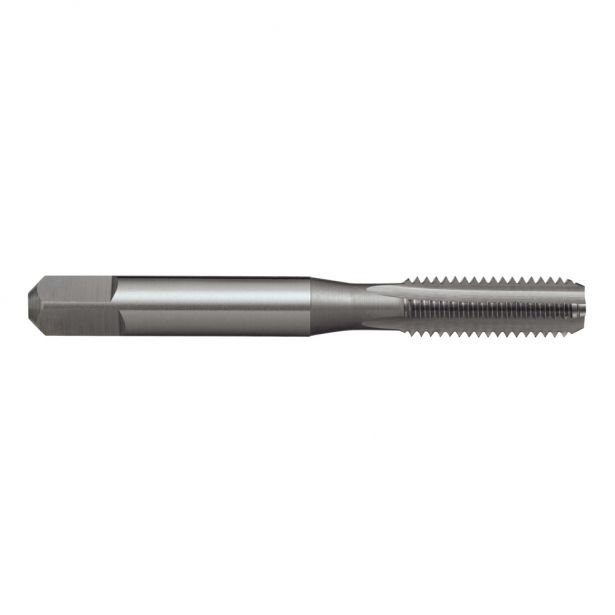

SUTTON 1/2-14 BSPT STRAIGHT FLUTE TAP BOTTOM
SUTTON 1/2-14 BSPT STRAIGHT FLUTE TAP BOTTOM

SUTTON 1/2-14 BSPT STRAIGHT FLUTE TAP BOTTOM

$139.00
Quantity:
Pickup available at Hurrell Way Store Usually ready in 4 hours

SUTTON 1/2-14 BSPT STRAIGHT FLUTE TAP BOTTOM

Hurrell Way Store

Pickup available, usually ready in 4 hours

38A Hurrell Way
Rockingham WA 6168
Australia

+61895286400

Description

Features

  • General Purpose use for materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Bottoming
