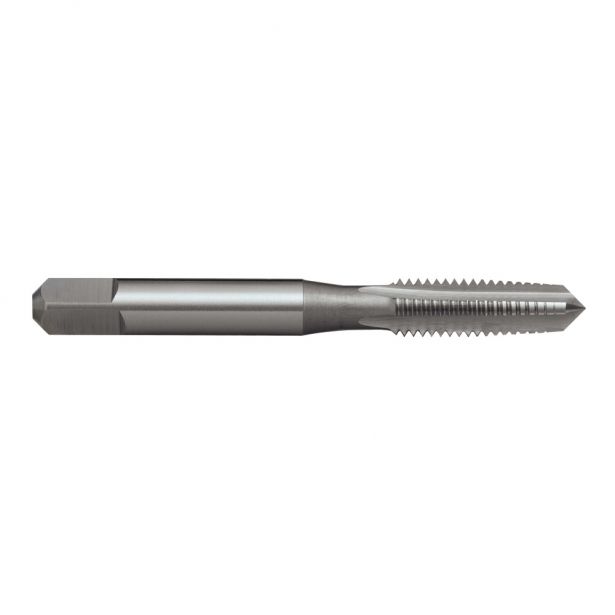

SUTTON M8 X 1.25 STRAIGHT FLUTE TAPS - TAPER T3840800
Quantity:
Pickup available at Hurrell Way Store
Usually ready in 4 hours
SUTTON M8 X 1.25 STRAIGHT FLUTE TAPS - TAPER T3840800
Hurrell Way Store
Pickup available, usually ready in 4 hours
38A Hurrell Way
Rockingham WA 6168
Australia
Description
- General-purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications
- Designation: N
- Finish: Brt
- Shank Form: A
- Type: Straight Flute
- Thread Form: M
- Lead: Taper
- Material: HSS
- Max Cut Depth: 1xD
- x: als
- Standard: ISO529
- Nut Tolerance: ISO 2 / 6H

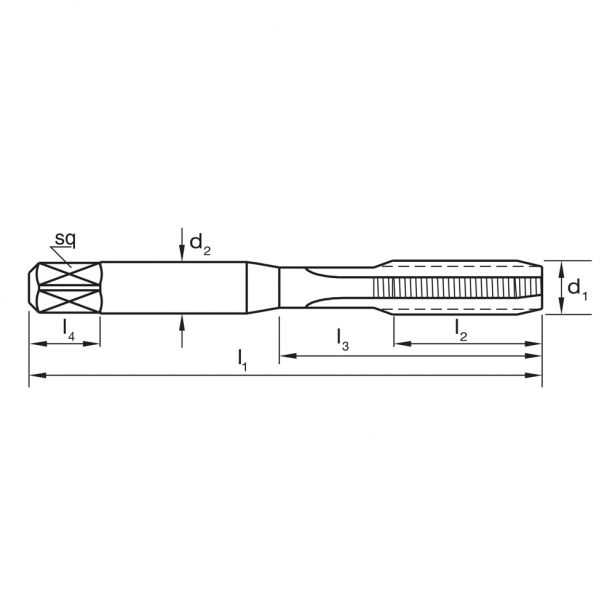

- Size:
- d1: M8
- 11: 72
- l2: 22
- d2: 8
- sq: 6.3/li>
- l4: 9
- z: 4
- Drill Ø: 6.8
- Pitch: 1.25
